製品概要
概要

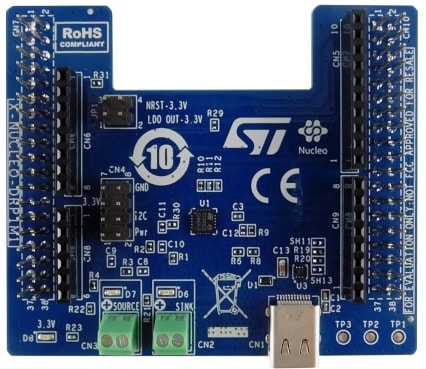

拡張ボードX-NUCLEO-DRP1M1は、Dual Role Power（DRP）アプリケーションに適したVBUSおよびCCラインに必要な、TCPP03-M20およびUSB Type-C™の機能と保護機能を評価します。
USB Type-C Power Delivery（UCPD）のペリフェラルを備えたマイクロコントローラ（マイコン）を搭載した「STM32 Nucleo-64ボード」上にスタックすることができます。
接続されたSTM32 Nucleo開発ボードに電力供給する内蔵のLDO（低ドロップアウト）リニア･レギュレータ「ST715PU33R」により、X-NUCLEO-DRP1M1はデッド･バッテリ機能とシンク動作を効果的に評価します。また、互換性のある外部ソースがボードに接続されている場合は、USB Type-Cのソース動作を評価します。
ソーシング･デバイス向けのDual Role Data（DRD）機能も使用可能です。
X-NUCLEO-DRP1M1は、USB Type-C / PD 3.1規格の標準電力域（SPR）に準拠しており、プログラマブル電源（PPS）をサポートする100W DRPソリューションとしてUSB-IF認証を取得しています。
付属のソフトウェア･パッケージ（X-CUBE-TCPP）には、UCPDベースのマイクロコントローラを組み込んだ開発ボード（NUCLEO-G071RB / NUCLEO-G474RE / NUCLEO-G0B1RE）用のサンプル･アプリケーションも含まれています。
-
特徴
- すべてのUSB Type-C PD SPRプロファイルを最大100Wまでサポート
- Dual Role Data / Power構成の管理
- STM32 USBデータ機能に準拠したUSB 2.0 Dual Role Dataに対応
- VBUS向けのサージ電流保護（8/20μs） / 過電圧保護 / 過電流保護 / 放電保護
- CC1およびCC2構成チャネル･ピンのVBUSへの短絡保護
- CC1 / CC2 / D+ / D-に対するESD保護（IEC61000-4-2レベル4 ± 8kV接触放電）
- VCONN向けの過電圧保護 / 過電流保護 / 放電保護
- D+ / D-データ･ラインにコモン･モード･フィルタを搭載
- 消費電力を最適化する3つの電力モード
- プログラマブル電源（PPS）に準拠
- 無料の開発ファームウェア･ライブラリ
- UCPDペリフェラルを備えたSTM32を搭載したSTM32 Nucleo-64ボードに対応
