製品概要
概要

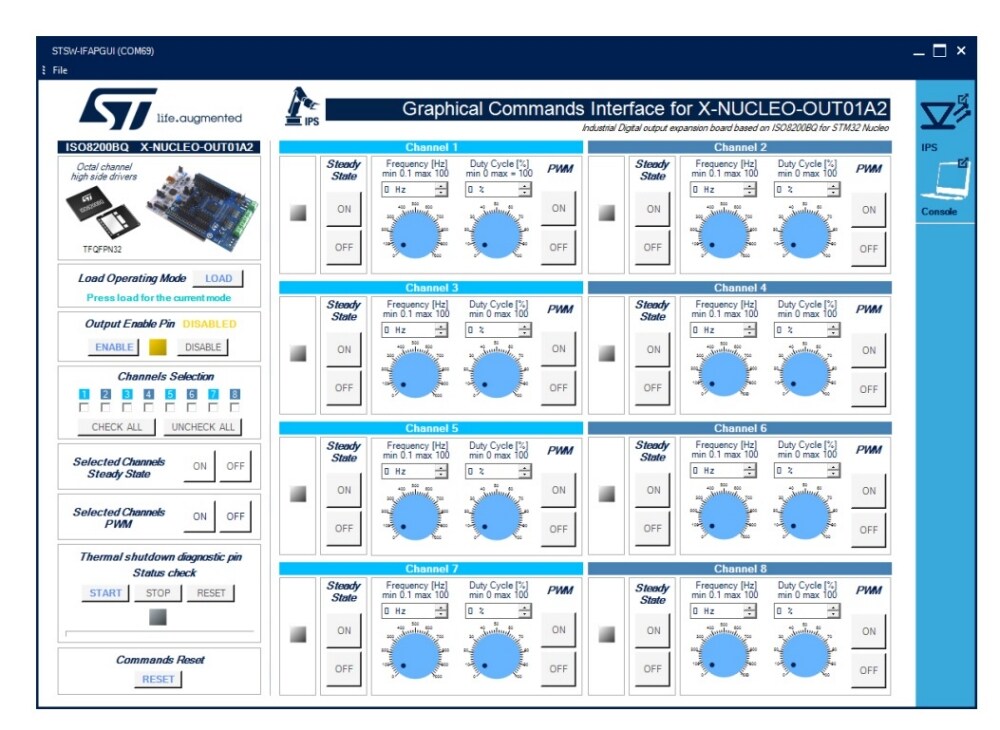

The STSW-OUT1F4 firmware runs on the NUCLEO-F401RE development board and allows controlling the X-NUCLEO-OUT01A2 expansion board using the STSW-IFAPGUI graphical user interface.
The STSW-OUT1F4 contains the software routines that enable the USB-based communication between the NUCLEO-F401RE and the system where the STSW-IFAPGUI runs, and the control of a single X-NUCLEO-OUT01A2.
The STSW-IFAPGUI is based on a common engine and several plug-ins designed to communicate through the USB connection with the application layer running on the NUCLEO-F401RE development board stacked with the expansion board.
-
特徴
- Full control of the X-NUCLEO-OUT01A2 expansion board via the STSW-IFAPGUI graphical user interface
- Control of:
- output channel switching frequency and duty cycle configuration
- visualization of diagnostic signal (common overtemperature/communication error)
- both Direct Control Mode and Synchronous Control Mode management
