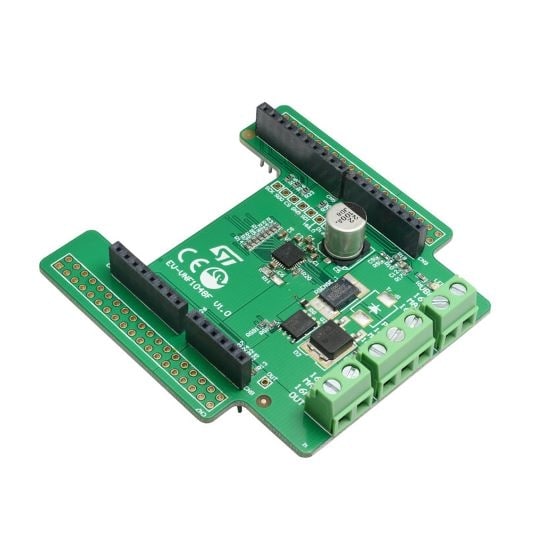

The EV-VNF1048F board provides an easy way to connect VNF1048F into the existing system.
特徴
EV-VNF1048F easy board that is able to work connected to EV-SPC582B to create an intelligent high side switch for 12 V, 24 V and 48 V automotive applications
一般
High-side switch Control IC with e-fuse protection for Automotive 12 V, 24 V and 48 V applications
SPI slave interface for host control
32-bit ST-SPI interface compatible with 3.3 V and 5 V CMOS level
2 stage charge pump
Gate drive for an external MOSFET in high side configuration
High precision uni-directional digital current sense via SPI through an external high side shunt resistor
Input for a NTC resistor to monitor the external MOSFET temperature
Very low standby current
Robust fail-safe functionality through internal and external controls
SPI register lock-out by a dedicated digital input pin
Integrated ADC for TJ, VNTC, VOUT and VDS conversion
Protections
Battery under-voltage shut-down
External MOSFET desaturation shutdown configurable via SPI
Hard short circuit latch-off configurable via SPI
Current vs time latch-off configurable via SPI (fuse-emulation)
Device overtemperature shutdown
External MOSFET overtemperature shutdown
Intelligent high current fuse replacement for automotive applications
Especially intended for automotive power distribution applications
Graphic User Interface for VNF1048F Evaluation Board
