製品概要
概要

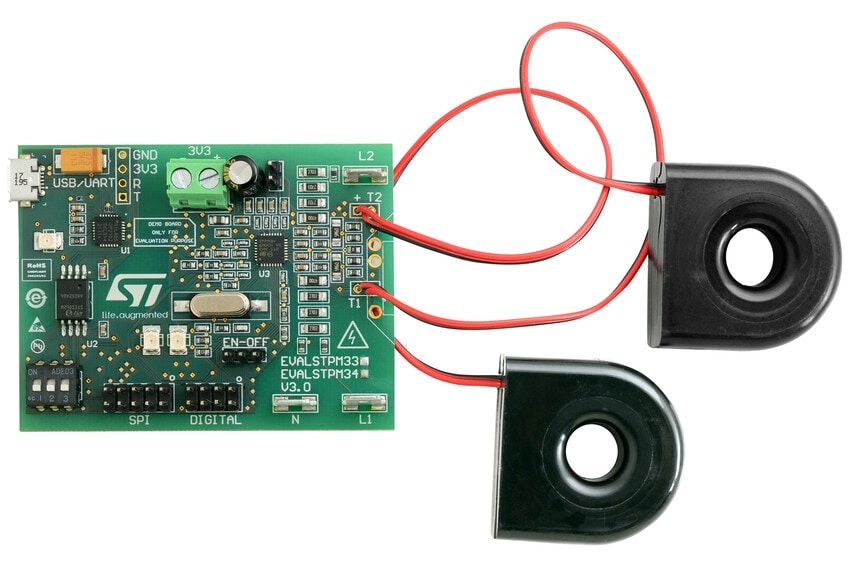

The EVALSTPM34 evaluation board is a class 0.2, dual-phase meter with 2 CTs for power line systems with Vnom = 140 to 300 V(RMS), Inom / Imax = 5/100 A(RMS), flin = 50/60 Hz ± 10% and Tamb = -40 to +85 °C.
Measured active/reactive power can be output from two programmable LEDs on the board.
The board can be interfaced with a PC running evaluation software through an isolated USB-to-UART port, or through the STEVAL-IPE023V1 USB (SPI) isolated interface tool for configuration and data reading.
The board also has SPI/UART pins available to interface a microcontroller for application development.
-
特徴
- 0.2% accuracy dual or split-phase meter
- Vnom(RMS) = 140 to 300 V, Inom/Imax(RMS) = 5/100 A, flin = 50/60 Hz ± 10%
- Connector for USB isolated hardware programmer tool STEVAL-IPE023V1 and PC GUI
- USB-to-UART isolated connector to PC GUI using virtual COM port
- SPI/UART switch for device peripheral selection
- 2 programmable LEDs on board
- Digital expansion to external system-on-chip or MCU
- 3.3 V power supply: external or through STEVAL-IPE023V1 isolated USB board
- IEC61000 standard compliant
- RoHS compliant
注目のアプリケーション
Smart meters and energy metering solutions
Discover ST's solutions for smart meters and design of smart metering systems.
推奨製品
STEVAL-IPE023V1
USB interface tool for the STPMxx evaluation boards
STPM34: 4-channels high accuracy metering
ADC+DSP IC offering 0.1% accuracy over a 5000:1 dynamic range
おすすめ製品
STSW-STPM006
Embedded firmware for STPM3x data reading and signal THD calculation
STSW-STPM003
Three-phase firmware implementation for STM32F4 discovery kit, EVALSTPM32, EVALSTPM33 and EVALSTPM34
STSW-STPM001
STPM32/33/34 evaluation software
All tools & software
-
-
