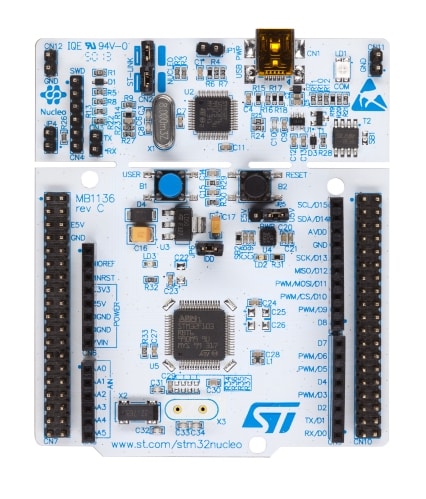

NUCLEO-F303RE

量産中

STM32 Nucleo-64 development board with STM32F303RE MCU, supports Arduino and ST morpho connectivity

データブリーフのダウンロード Order Direct

製品概要

概要

STM32 Nucleo-64ボードは、プロトタイプを作成して新しいアイデアを試したいときに、低コストで柔軟性の高いツールとして活躍します。STM32マイクロコントローラが提供するさまざまな性能と消費電力特性の中から、最適な組み合わせを選択してください。互換ボードについては、外部スイッチング電源(SMPS)がRUNモードにおける電力消費を大幅に削減します。

ARDUINO® Uno V3コネクタへの対応やST Morphoヘッダと各種専用シールドによって、STM32 Nucleoのオープンな開発プラットフォームの機能を簡単に拡張することができます。

STM32 Nucleo-64ボードにはST-LINKデバッガ / プログラマが内蔵されているため、デバッグ・プローブを別途用意する必要がありません。

STM32 Nucleo-64ボードには、STM32の総合的な無料ソフトウェア・ライブラリに加え、STM32Cubeファームウェア・パッケージで使用できるサンプル・プログラムが付属しています。

  • 特徴

    • 共通の特徴
      • LQFP64またはLQFP48パッケージのSTM32マイクロコントローラ
      • ARDUINO®と共有されるユーザLED x1
      • ユーザ・ボタン x1 / リセット・ボタン x1
      • 水晶発振子(32.768kHz)
      • ボード・コネクタ:
        • ARDUINO® Uno V3拡張コネクタ
        • STM32のすべてのI/OにフルアクセスできるST Morpho拡張ピン・ヘッダ
      • 柔軟性の高い電源オプション:ST-LINK / USB VBUS / 外部電源
      • USB の再エニュメレーション機能を備えたオンボード ST-LINK デバッガ / プログラマ:マスストレージ、仮想 COM ポート、およびデバッグ・ポート
      • STM32Cubeファームウェア・パッケージで利用できる包括的な無料ソフトウェア・ライブラリとサンプル・コード
      • IAR Embedded Workbench®、MDK-ARM、STM32CubeIDEなどの幅広い統合開発環境(IDE)をサポート
    • ボード固有の特徴
      • Vcoreロジック電源を生成する外部スイッチング電源(SMPS)
      • 24MHzまたは48MHz HSE
      • ボード・コネクタ:
        • 外部スイッチング電源(SMPS)専用コネクタ
        • ST-LINK用のMicro-BまたはMini-B USBコネクタ
        • MIPI®デバッグ・コネクタ
