STEVAL-CBL005V1

NRND
MySTに保存する

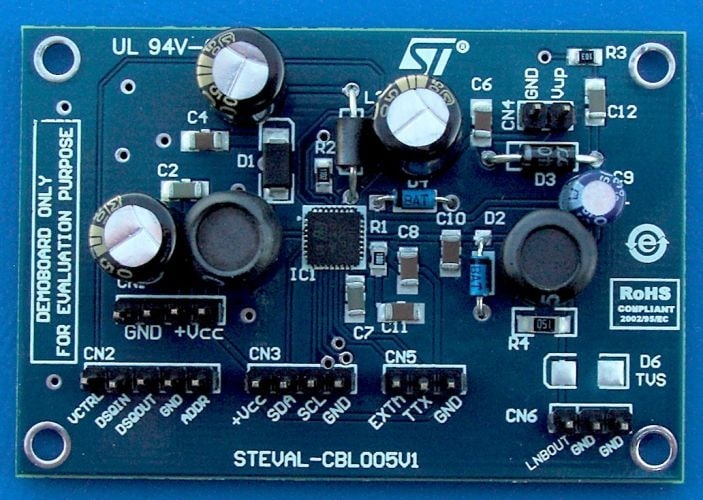

LNB power supply demonstration board based on the LNBH23

データブリーフのダウンロード
概要

製品概要

概要

The STEVAL-CBL005V1 LNB power supply demonstration board implements a DC-DC converter based on the LNBH23 device. The LNBH23 is an LNB supply and control IC with step-up and an I2C interface. It is used to power an LNB on a dish antenna for reception of satellite TV signals.

The LNBH23 is an integrated solution for supplying/interfacing satellite LNB modules in accordance with international standards.

This solution is simple, inexpensive, shows very good performance and has a low external component count.

The LNBH23 demonstration board includes an I2C™ bus interface and an internal 22 kHz tone generator that is factory-trimmed to comply with widely accepted standards, and can be controlled through the DSQIN pin (TTL compatible). This allows immediate DiSEqC™ data encoding.

Due to the fully integrated step-up DC-DC converter, it works with a single input voltage supply source ranging from 8 V to 15 V.

  • 特徴

    • Implements the LNBH23 in a QFN32 package
    • Integrated DC-DC converter
    • I2C™ bus interface for the IC control and diagnostics
    • Single input supply voltage: from 8 V to 15 V
    • User-friendly graphical user interface (\"LNBxxx control suite\") software included in the kit
    • Integrated 22 kHz tone generator, factorytrimmed in accordance with widely accepted standards
