STEVAL-FKI433V1

NRND

Sub-1GHz transceiver development kit based on S2-LP

データブリーフのダウンロード

製品概要

概要

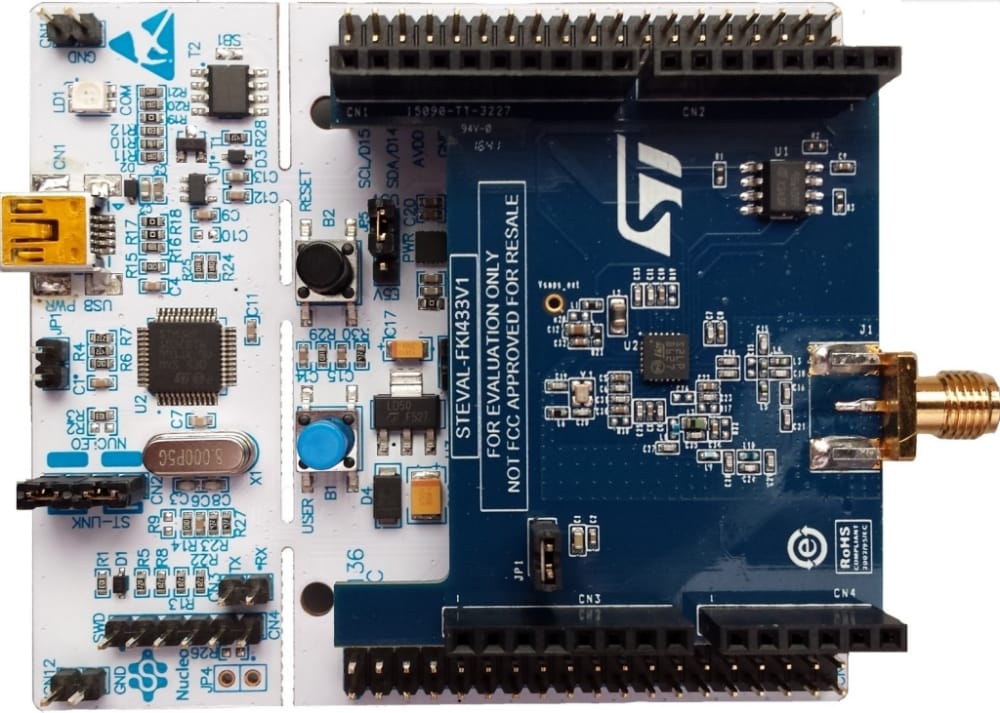

The STEVAL-FKI433V1 evaluation board is based on the S2-LP sub-1 GHz ultra-low power, low data-rate transceiver suitable for ISM bands and Wireless M-Bus.

The motherboard is the NUCLEO-L152RE board with STM32L low power microcontroller to control the S2-LP device and integrated ST-LINK/V2-1 debugger and programmer for firmware updating.

  • 特徴

    • S2-LP narrow band ultra-low power sub-1 GHz transceiver in a standalone RF Module tuned for 430 - 470 MHz frequency bands
    • STM32 Nucleo 64 development board with STM32L152RE MCU
    • Suitable for Wireless M-Bus systems
    • Associated S2-LP development kit including documentation, firmware for STM32L and GUI
    • Programmable RF output power up to +16 dBm
    • Modulation schemes: 2-FSK, 2-GFSK, 4-FSK, 4-GFSK, OOK, and ASK
    • Air data rate from 0.3 to 500 kbps
    • Ultra-low power consumption:
      • 6.7 mA RX
      • 10 mA TX @ +10 dBm
    • Excellent performance of receiver sensitivity (up to -130 dBm)
    • Low duty cycle RX / TX operation mode
    • Automatic acknowledgement, retransmission and timeout protocol engine
    • SPI interface for microcontroller
    • USB interface
    • RoHS compliant
