STEVAL-ISA075V1

NRND
MySTに保存する

High efficiency DC-DC converter - compact solution based on L6738

データブリーフのダウンロード
概要

製品概要

概要

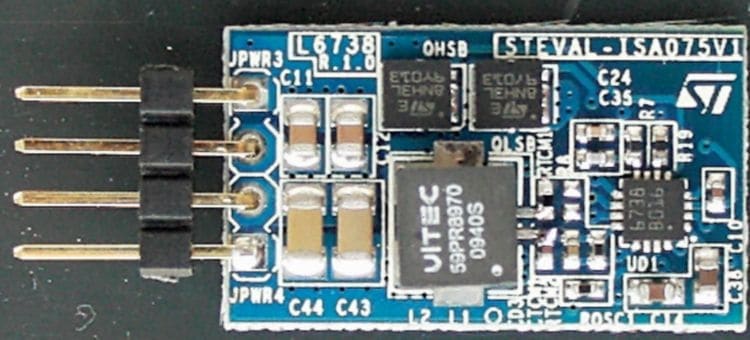

The STEVAL-ISA075V1 product evaluation board is a compact solution designed for testing the performance of the L6738.

The L6738 is a single-phase step-down controller with integrated high-current drivers that provides complete control logic and protection for DC-DC converters.

  • 特徴

    • Compact size (25.4 mm x 14.6 mm)
    • 4 layers
    • VIN< 6 V
    • VOUTup to 3.5 V
    • IOUTup to 8 A (depending on VOUT)
    • FSW= 600 KHz
    • Dual power MOS option (2 x STL 3x3 or 1 x Dual SO8)
    • CIN= 2 x GRM21BR60J226ME39 (22 uF,6.3 V, 0805)
    • COUT= 2 or 3 x GRM31CC70G226KE01 (22 uF, 4 V, 1206)
    • Dual choke options (WE 744310095 or VITEC 59Px8970)
    • RoHS compliant
