STEVAL-ISA113V1

量産中

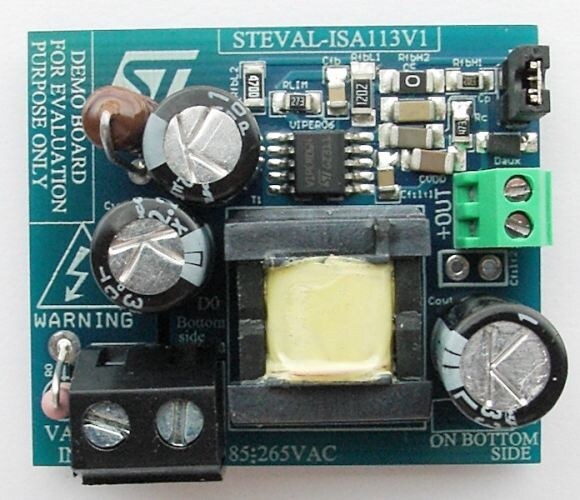

Wide range single-output demonstration board based on the VIPER06HS

データブリーフのダウンロード

製品概要

概要

The STEVAL-ISA113V1 demonstration board is a 12 V-0.35 A power supply set in non-isolated flyback topology using the new VIPER06HS offline high-voltage converter by STMicroelectronics.

The features of the device include an 800 V avalanche rugged power section, PWM operation at 115 kHz with frequency jittering for lower EMI, current limiting with adjustable set point, onboard soft-start, a safe auto-restart after a fault condition and a low standby power.

The protection features available include a thermal shutdown with hysteresis, delayed overload protection, and open loop failure protection.

  • 特徴

    • Universal input mains range:
      • input voltage 90 - 265 VAC
      • frequency 45 - 65 Hz
    • Single-output voltage: 12 V at 0.35 A continuous operation
    • Standby mains consumption: < 30 mW at 230 VAC
    • Average efficiency: > 74%
    • Fully protected against faults (overload, feedback disconnection and overheating)
    • EMI: according to EN55022-Class-B
    • RoHS compliant
