60 LED (6 x 10) cost-effective matrix display based on STP16CPC26 with Bluetooth low energy and Android app

データブリーフのダウンロード
概要

製品概要

概要

概要

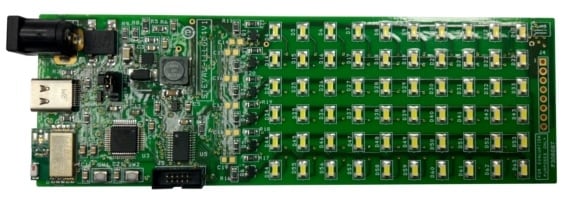

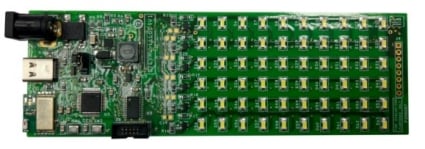

The STP16CPC26 low voltage 16-bit constant current LED sink driver on the STEVAL-LLL005V1 evaluation board ensures a cost effective 6x10 LED matrix with individual LED control.

The LED driver evaluation board includes a jumper to select between powering the board through a standard DC jack input or a USB Type-C connector, as well as two control switches.

An Android app is also available for enhanced user experience and control.

The SPBTLE-RF very low power module for Bluetooth Smart v4.1 allows communication with the board via your smartphone.

The STM32F030 mainstream ARM Cortex-M0 Value line MCU with 64 Kbytes of Flash, 48 MHz CPU manages driving and transmission of data over BLE.

  • 特徴

    • Cost effective 16-bit LED driving scheme
    • Driver for 6x10 LED matrix with individual LED control and row-wise scanning
    • USB Type-C and DC jack connector for DC input power
    • Bluetooth Smart connectivity and Android application for hassle free demonstration
    • Connector for stacking multiple LED drivers in daisy chain configuration
    • Preconfigured demos (selected through on-board switches):
      • with brightness control
      • with speed control
      • with blink rate (flashing) control

おすすめ製品

STSW-LLL005FW

Embedded software sample for LED matrix driver based on STP16CPC26 with Bluetooth low energy and Android App
