Dual MP23DB01HP MEMS mic daughter board compatible with STM32H7 discovery kit

データブリーフのダウンロード
Order Direct
概要

製品概要

概要

概要

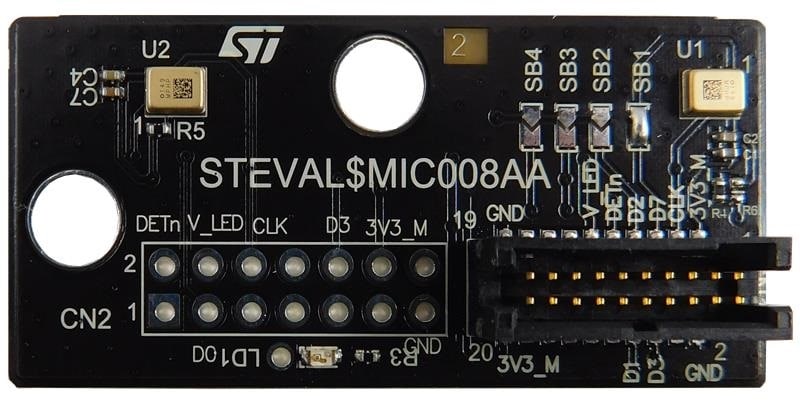

The STEVAL-MIC008A is a daughterboard containing two MP23DB01HP MEMS microphones.

The coupon concept allows easy performance testing of MEMS microphones. The board has been realized as a daughter board of all STM32H7 discovery kit (example STM32H747I-DISCO, STM32H735G-DK, STM32H7B3I-DK).

  • 特徴

    • Two MP23DB01HP bottom port digital MEMS microphones
    • Voltage supply from 1.52 to 3.6 V
    • 135 dBSPL acoustic overload point
    • Omnidirectional sensitivity
    • Two different operation mode (low power and performance mode)
    • Sensitivity -41 dBFs ±1 dB
    • RoHS compliant
