STEVAL-MKI236A

量産中

2xASM330LHB adapter board for a standard DIL24 socket

データブリーフのダウンロード Order Direct

製品概要

概要

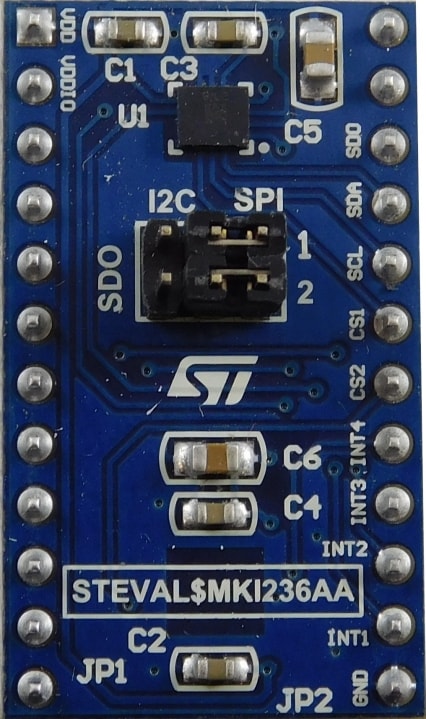

The STEVAL-MKI236A is an adapter board designed to facilitate the evaluation of the ASM330LHB in the MEMS and sensors product portfolio. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application.

The STEVAL-MKI236A can be plugged into a standard DIL24 socket. The adapter provides the complete ASM330LHB pinout and comes ready-to-use with the required decoupling capacitors on the VDD and VDDIO power supply lines.

This adapter is supported by the STEVAL-MKI109V3 motherboard, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC.

MEMS-Studio is a complete software solution for the evaluation and programming of all MEMS sensors and it is available for Linux, macOS, and Windows operating systems.

You can also use the downloadable graphical user interface (Unico-GUI) or dedicated software routines for customized applications.
