製品概要

概要

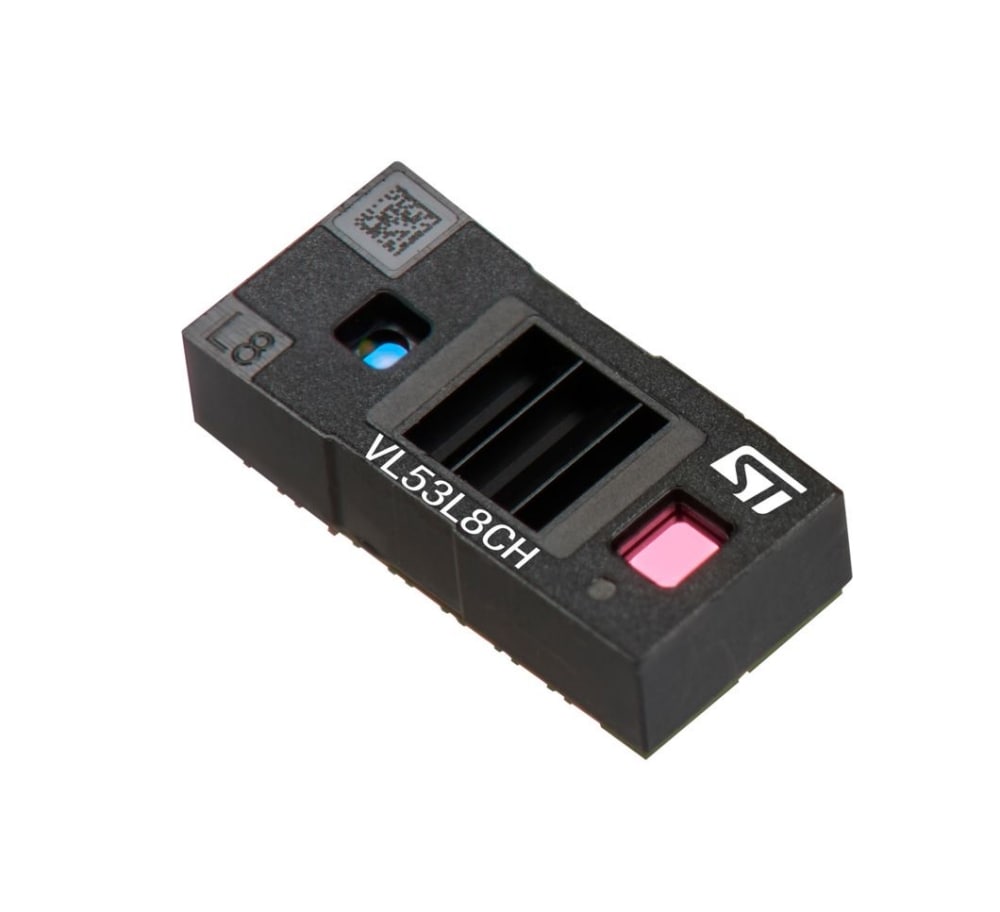

The VL53L8CX is the perfect Time-of-Flight sensor enabling AI applications, with enhanced performance under ambient light with a wide 65° diagonal FoV. The compact and normalized histogram (CNH) innovative data output is specially designed for artificial intelligence (AI) applications requiring multizone raw data from a high performance multizone ToF sensor.

The IR signal measured in each zone is sent as raw data to the host through each bin of the histogram. Highly configurable, the user can program the resolution of the VL53L8CX up to 64 zones (8x8 zones), modify the histogram resolution up to 128 bins, and define the bin width. All this CNH data is transmitted to the host through I²C or SPI, up to 30 Hz, in addition to the standard processed data of the ToF sensor (ranging distance, signal level, reflectance etc.).

The CNH data transform STMicroelectronics' Time-of-Flight ranging sensor into a versatile optical sensor, which can enable endless AI-based applications. This CNH raw data sent to the host, on top of the standard ranging data, opens the door to many new applications beyond simple distance measurements. From solid material (carpet, wood, glass, mirror...) to gas or liquid (water, oil, chemical...), it becomes possible to detect the location and the size of a cup in a coffee machine or beverage dispenser, to sense the floor material for robotics, and develop advanced shape, motion, or hand posture recognition.

The VL53L8CX integrates a powerful new generation VCSEL, and two advanced metasurface lenses. The integrated VCSEL emits fully invisible 940 nm IR light, which is Class 1 certified and safe for the eyes.

特徴
Compact and normalized histogram (CNH) data output for AI

Multizone data output up to 64 separate zones

Histogram output with signal count for each bin

Histogram size programmable up to 128 bins

Minimum bin width down to 37 mm

Maximum frequency up to 30 Hz through I²C or SPI

Ambient IR light level reported for each zone

All Time-of-Flight (ToF) processed data (distance, signal amplitude, reflectance etc.) are available, in addition to CNH

Highly configurable CNH in order to meet user expectations

64 zones with 18 bins at 15 Hz

32 zones with 36 bins at 15 Hz

16 zones with 48 bins at 25 Hz

Wide ToF sensor with 65° field of view (FoV)

45° x 45° square FoV (65° diagonal)

Autonomous low-power mode with interrupt programmable thresholds to wake up the host

Up to 400 cm ranging

Motion indicator for each zone to detect if targets have moved and how they have moved

Fully integrated miniature module

Emitter: 940 nm invisible-light vertical-cavity surface-emitting laser (VCSEL)

Diffractive optical elements (DOE) on both transmitter and receiver enabling square FoV

Receiving array of single photon avalanche diodes (SPADs)

Low-power microcontroller running firmware

Size: 6.4 x 3.0 x 1.75 mm

Easy integration

Single reflowable component

Requires 1.8 V core supply and 3.3 V AVDD supply

Optional 1.2 V or 1.8 V IOVDD interface voltage levels

I²C (up to 1 MHz) or SPI (up to 3 MHz) interface

Compatible with a wide range of cover glass materials

Driver compatible with VL53L7CH

Pin-to-pin compatible with VL53L8CX
続きを読む一部を表示

All tools & software

Imaging software

	製品型番	ステータス	概要	タイプ	サプライヤ
Worldwide,Asia,Europe,Africa,North America,South America,Oceania,Afghanistan,Bahrain,Bangladesh,Bhutan,Brunei,Burma (Myanmar),Cambodia,China,East Timor,India,Indonesia,Iraq,Japan,Jordan,Kazakhstan,Kuwait,Kyrgyzstan,Laos,Malaysia,Maldives,Mongolia,Nepal,Oman,Pakistan,Philippines,Qatar,Russian Federation,Saudi Arabia,Singapore,South Korea,Sri Lanka,Taiwan,Tajikistan,Thailand,Turkmenistan,United Arab Emirates,Uzbekistan,Vietnam,Yemen,Albania,Andorra,Armenia,Austria,Azerbaijan,Belarus,Belgium,Bosnia and Herzegovina,Bulgaria,Croatia,Cyprus,Czech Republic,Denmark,Estonia,Finland,France,Georgia,Germany,Greece,Hungary,Iceland,Ireland,Israel,Italy,Latvia,Liechtenstein,Lithuania,Luxembourg,Macedonia,Malta,Moldova,Monaco,Montenegro,Netherlands,Norway,Poland,Portugal,Romania,San Marino,Serbia,Slovakia,Slovenia,Spain,Sweden,Switzerland,Turkey,Ukraine,United Kingdom,Vatican City,Algeria,Angola,Benin,Botswana,Burkina,Burundi,Cameroon,Cape Verde,Central African Republic,Chad,Comoros,Democratic Republic of Congo,Djibouti,Egypt,Equatorial Guinea,Eritrea,Ethiopia,Gabon,Gambia,Ghana,Guinea,Guinea-Bissau,Ivory Coast,Kenya,Lesotho,Liberia,Libya,Madagascar,Malawi,Mali,Mauritania,Mauritius,Morocco,Mozambique,Namibia,Niger,Nigeria,Rwanda,Sao Tome and Principe,Senegal,Seychelles,Sierra Leone,Somalia,South Africa,Swaziland,Tanzania,Togo,Tunisia,Uganda,Zambia,Zimbabwe,Antigua and Barbuda,Bahamas,Barbados,Belize,Canada,Costa Rica,Dominica,Dominican Republic,El Salvador,Grenada,Guatemala,Haiti,Honduras,Jamaica,Mexico,Nicaragua,Panama,Saint Kitts and Nevis,Saint Lucia,Saint Vincent and the Grenadines,Trinidad and Tobago,United States,Argentina,Bolivia,Brazil,Chile,Colombia,Ecuador,Guyana,Paraguay,Peru,Suriname,Uruguay,Venezuela,Australia,Fiji,Kiribati,Marshall Islands,Micronesia,Nauru,New Zealand,Palau,Papua New Guinea,Samoa,Solomon Islands,Tonga,Tuvalu,Vanuatu	STSW-IMG043	量産中	Software package for the VL53L7CH and VL53L8CH artificial intelligence enabler multizone Time-of-Flight sensors	イメージング･ソフトウェア	ST	STSW-IMG043 概要: Software package for the VL53L7CH and VL53L8CH artificial intelligence enabler multizone Time-of-Flight sensors

STM32 open development environment

	製品型番	ステータス	概要	タイプ	サプライヤ
Worldwide,Asia,Europe,Africa,North America,South America,Oceania,Afghanistan,Bahrain,Bangladesh,Bhutan,Brunei,Burma (Myanmar),Cambodia,China,East Timor,India,Indonesia,Iraq,Japan,Jordan,Kazakhstan,Kuwait,Kyrgyzstan,Laos,Malaysia,Maldives,Mongolia,Nepal,Oman,Pakistan,Philippines,Qatar,Russian Federation,Saudi Arabia,Singapore,South Korea,Sri Lanka,Taiwan,Tajikistan,Thailand,Turkmenistan,United Arab Emirates,Uzbekistan,Vietnam,Yemen,Albania,Andorra,Armenia,Austria,Azerbaijan,Belarus,Belgium,Bosnia and Herzegovina,Bulgaria,Croatia,Cyprus,Czech Republic,Denmark,Estonia,Finland,France,Georgia,Germany,Greece,Hungary,Iceland,Ireland,Israel,Italy,Latvia,Liechtenstein,Lithuania,Luxembourg,Macedonia,Malta,Moldova,Monaco,Montenegro,Netherlands,Norway,Poland,Portugal,Romania,San Marino,Serbia,Slovakia,Slovenia,Spain,Sweden,Switzerland,Turkey,Ukraine,United Kingdom,Vatican City,Algeria,Angola,Benin,Botswana,Burkina,Burundi,Cameroon,Cape Verde,Central African Republic,Chad,Comoros,Democratic Republic of Congo,Djibouti,Egypt,Equatorial Guinea,Eritrea,Ethiopia,Gabon,Gambia,Ghana,Guinea,Guinea-Bissau,Ivory Coast,Kenya,Lesotho,Liberia,Libya,Madagascar,Malawi,Mali,Mauritania,Mauritius,Morocco,Mozambique,Namibia,Niger,Nigeria,Rwanda,Sao Tome and Principe,Senegal,Seychelles,Sierra Leone,Somalia,South Africa,Swaziland,Tanzania,Togo,Tunisia,Uganda,Zambia,Zimbabwe,Antigua and Barbuda,Bahamas,Barbados,Belize,Canada,Costa Rica,Dominica,Dominican Republic,El Salvador,Grenada,Guatemala,Haiti,Honduras,Jamaica,Mexico,Nicaragua,Panama,Saint Kitts and Nevis,Saint Lucia,Saint Vincent and the Grenadines,Trinidad and Tobago,United States,Argentina,Bolivia,Brazil,Chile,Colombia,Ecuador,Guyana,Paraguay,Peru,Suriname,Uruguay,Venezuela,Australia,Fiji,Kiribati,Marshall Islands,Micronesia,Nauru,New Zealand,Palau,Papua New Guinea,Samoa,Solomon Islands,Tonga,Tuvalu,Vanuatu	P-NUCLEO-53L8A1	量産中	STM32 Nucleo pack with X-NUCLEO-53L8A1 expansion board and NUCLEO-F401RE development board	STM32 ODE Sense HW	ST	P-NUCLEO-53L8A1 概要: STM32 Nucleo pack with X-NUCLEO-53L8A1 expansion board and NUCLEO-F401RE development board
Worldwide,Asia,Europe,Africa,North America,South America,Oceania,Afghanistan,Bahrain,Bangladesh,Bhutan,Brunei,Burma (Myanmar),Cambodia,China,East Timor,India,Indonesia,Iraq,Japan,Jordan,Kazakhstan,Kuwait,Kyrgyzstan,Laos,Malaysia,Maldives,Mongolia,Nepal,Oman,Pakistan,Philippines,Qatar,Russian Federation,Saudi Arabia,Singapore,South Korea,Sri Lanka,Taiwan,Tajikistan,Thailand,Turkmenistan,United Arab Emirates,Uzbekistan,Vietnam,Yemen,Albania,Andorra,Armenia,Austria,Azerbaijan,Belarus,Belgium,Bosnia and Herzegovina,Bulgaria,Croatia,Cyprus,Czech Republic,Denmark,Estonia,Finland,France,Georgia,Germany,Greece,Hungary,Iceland,Ireland,Israel,Italy,Latvia,Liechtenstein,Lithuania,Luxembourg,Macedonia,Malta,Moldova,Monaco,Montenegro,Netherlands,Norway,Poland,Portugal,Romania,San Marino,Serbia,Slovakia,Slovenia,Spain,Sweden,Switzerland,Turkey,Ukraine,United Kingdom,Vatican City,Algeria,Angola,Benin,Botswana,Burkina,Burundi,Cameroon,Cape Verde,Central African Republic,Chad,Comoros,Democratic Republic of Congo,Djibouti,Egypt,Equatorial Guinea,Eritrea,Ethiopia,Gabon,Gambia,Ghana,Guinea,Guinea-Bissau,Ivory Coast,Kenya,Lesotho,Liberia,Libya,Madagascar,Malawi,Mali,Mauritania,Mauritius,Morocco,Mozambique,Namibia,Niger,Nigeria,Rwanda,Sao Tome and Principe,Senegal,Seychelles,Sierra Leone,Somalia,South Africa,Swaziland,Tanzania,Togo,Tunisia,Uganda,Zambia,Zimbabwe,Antigua and Barbuda,Bahamas,Barbados,Belize,Canada,Costa Rica,Dominica,Dominican Republic,El Salvador,Grenada,Guatemala,Haiti,Honduras,Jamaica,Mexico,Nicaragua,Panama,Saint Kitts and Nevis,Saint Lucia,Saint Vincent and the Grenadines,Trinidad and Tobago,United States,Argentina,Bolivia,Brazil,Chile,Colombia,Ecuador,Guyana,Paraguay,Peru,Suriname,Uruguay,Venezuela,Australia,Fiji,Kiribati,Marshall Islands,Micronesia,Nauru,New Zealand,Palau,Papua New Guinea,Samoa,Solomon Islands,Tonga,Tuvalu,Vanuatu	SATEL-VL53L8	量産中	Breakout board based on the VL53L8 series Time-of-Flight sensors	STM32 ODE Sense HW	ST	SATEL-VL53L8 概要: Breakout board based on the VL53L8 series Time-of-Flight sensors
Worldwide,Asia,Europe,Africa,North America,South America,Oceania,Afghanistan,Bahrain,Bangladesh,Bhutan,Brunei,Burma (Myanmar),Cambodia,China,East Timor,India,Indonesia,Iraq,Japan,Jordan,Kazakhstan,Kuwait,Kyrgyzstan,Laos,Malaysia,Maldives,Mongolia,Nepal,Oman,Pakistan,Philippines,Qatar,Russian Federation,Saudi Arabia,Singapore,South Korea,Sri Lanka,Taiwan,Tajikistan,Thailand,Turkmenistan,United Arab Emirates,Uzbekistan,Vietnam,Yemen,Albania,Andorra,Armenia,Austria,Azerbaijan,Belarus,Belgium,Bosnia and Herzegovina,Bulgaria,Croatia,Cyprus,Czech Republic,Denmark,Estonia,Finland,France,Georgia,Germany,Greece,Hungary,Iceland,Ireland,Israel,Italy,Latvia,Liechtenstein,Lithuania,Luxembourg,Macedonia,Malta,Moldova,Monaco,Montenegro,Netherlands,Norway,Poland,Portugal,Romania,San Marino,Serbia,Slovakia,Slovenia,Spain,Sweden,Switzerland,Turkey,Ukraine,United Kingdom,Vatican City,Algeria,Angola,Benin,Botswana,Burkina,Burundi,Cameroon,Cape Verde,Central African Republic,Chad,Comoros,Democratic Republic of Congo,Djibouti,Egypt,Equatorial Guinea,Eritrea,Ethiopia,Gabon,Gambia,Ghana,Guinea,Guinea-Bissau,Ivory Coast,Kenya,Lesotho,Liberia,Libya,Madagascar,Malawi,Mali,Mauritania,Mauritius,Morocco,Mozambique,Namibia,Niger,Nigeria,Rwanda,Sao Tome and Principe,Senegal,Seychelles,Sierra Leone,Somalia,South Africa,Swaziland,Tanzania,Togo,Tunisia,Uganda,Zambia,Zimbabwe,Antigua and Barbuda,Bahamas,Barbados,Belize,Canada,Costa Rica,Dominica,Dominican Republic,El Salvador,Grenada,Guatemala,Haiti,Honduras,Jamaica,Mexico,Nicaragua,Panama,Saint Kitts and Nevis,Saint Lucia,Saint Vincent and the Grenadines,Trinidad and Tobago,United States,Argentina,Bolivia,Brazil,Chile,Colombia,Ecuador,Guyana,Paraguay,Peru,Suriname,Uruguay,Venezuela,Australia,Fiji,Kiribati,Marshall Islands,Micronesia,Nauru,New Zealand,Palau,Papua New Guinea,Samoa,Solomon Islands,Tonga,Tuvalu,Vanuatu	X-NUCLEO-53L8A1	量産中	Time-of-Flight expansion board based on the VL53L8 series for STM32 Nucleo	STM32 ODE Sense HW	ST	X-NUCLEO-53L8A1 概要: Time-of-Flight expansion board based on the VL53L8 series for STM32 Nucleo

すべてのリソース

すべてのカテゴリを表示

	タイトル	バージョン	更新日

製品スペック (2)

	タイトル	バージョン	更新日
PDF	DS14310 Artificial intelligence enabler, high performance 8x8 multizone Time-of-Flight (ToF) sensor	7.0	04 Oct 2024	04 Oct 2024 DS14310 Artificial intelligence enabler, high performance 8x8 multizone Time-of-Flight (ToF) sensor 7.0
PDF	DB5046 Artificial intelligence enabler, high performance 8x8 multizone Time-of-Flight (ToF) sensor	1.0	16 Jun 2023	16 Jun 2023 DB5046 Artificial intelligence enabler, high performance 8x8 multizone Time-of-Flight (ToF) sensor 1.0

アプリケーションノート (3)

	タイトル	バージョン	更新日
PDF	AN5894 STマイクロエレクトロニクスのTime-of-FlightセンサにおけるFoV（視野角）の定義について	1.0	04 Apr 2024	04 Apr 2024 AN5894 STマイクロエレクトロニクスのTime-of-FlightセンサにおけるFoV（視野角）の定義について 1.0
PDF	AN5939 Guidelines for the cover glass of the VL53L8 Time-of-Flight (ToF) multizone sensor family	3.0	06 Mar 2025	06 Mar 2025 AN5939 Guidelines for the cover glass of the VL53L8 Time-of-Flight (ToF) multizone sensor family 3.0
PDF	AN5897 PCB thermal guidelines for the VL53L8 Time-of-Flight (ToF) multizone sensor family	2.0	16 Aug 2023	16 Aug 2023 AN5897 PCB thermal guidelines for the VL53L8 Time-of-Flight (ToF) multizone sensor family 2.0

テクニカル･ノート & 技術解説 (2)

	タイトル	バージョン	更新日
PDF	TN1527 Frequently asked questions on compact and normalized histograms (CNH)	1.0	27 Jun 2024	27 Jun 2024 TN1527 Frequently asked questions on compact and normalized histograms (CNH) 1.0
PDF	TN1532 Recommendations for assembling dToF sensors without liners in an environmentally clean place	1.0	15 Jul 2024	15 Jul 2024 TN1532 Recommendations for assembling dToF sensors without liners in an environmentally clean place 1.0

ユーザマニュアル (1)

	タイトル	バージョン	更新日
PDF	UM3183 人工知能（AI）の使用を有効化するVL53L7CHおよびVL53L8CHマルチゾーンTime-of-Flight（ToF）センサ	2.0	18 Nov 2024	18 Nov 2024 UM3183 人工知能（AI）の使用を有効化するVL53L7CHおよびVL53L8CHマルチゾーンTime-of-Flight（ToF）センサ 2.0

ツール&ソフトウェア用アプリケーション・ノート (1)

	タイトル	バージョン	更新日
PDF	AN5945 How to connect the SATEL-VL53L8 to an STM32 Nucleo-64 board	3.1	18 Dec 2023	18 Dec 2023 AN5945 How to connect the SATEL-VL53L8 to an STM32 Nucleo-64 board 3.1

プレゼンテーション (2)

	タイトル	バージョン	更新日
PDF	Artificial intelligence enabler Time-of-Flight sensors with CNH data	1.0	20 Dec 2023	20 Dec 2023 Artificial intelligence enabler Time-of-Flight sensors with CNH data 1.0
PDF	Discover in details Latest Time-of-Flight sensor solutions and applications !	1.0	26 Feb 2024	26 Feb 2024 Discover in details Latest Time-of-Flight sensor solutions and applications ! 1.0

製品認証 (1)

	タイトル	バージョン	更新日
PDF	VL53L8 IEC 60825-1 CB test certificate (eye safety)	1.0	08 Aug 2024	08 Aug 2024 VL53L8 IEC 60825-1 CB test certificate (eye safety) 1.0

EDAシンボル / フットプリント / 3Dモデル

すべてのリソース

	タイトル	バージョン	更新日

ハードウェアモデル (1)

	タイトル	バージョン	更新日
XLSX	How to calculate the dimensions of the Cover-Window exclusion zone above a Multizone ToF sensor	1.0	11 Sep 2023	11 Sep 2023 How to calculate the dimensions of the Cover-Window exclusion zone above a Multizone ToF sensor 1.0

Board Manufacturing Specifications (1)

	タイトル	バージョン	更新日
PDF	VL53L8 PCB Manufacturing Guidelines	1.0	12 Sep 2024	12 Sep 2024 VL53L8 PCB Manufacturing Guidelines 1.0

品質 & 信頼性

製品型番	マーケティング･ステータス	パッケージ	グレード	RoHSコンプライアンスグレード	Longevity Commitment	Longevity Starting Date	材料宣誓書**
VL53L8CHV0GC/1	量産中	OPT. LGA 6.40X3.0	インダストリアル	Ecopack2	7	2023-01-01T00:00:00.000+01:00	PDF XML

VL53L8CHV0GC/1

Package:

OPT. LGA 6.40X3.0

Material Declaration**:

PDF XML

More Info

(**) st.comで提供している材料宣誓書は、パッケージ･ファミリ内で最も一般的に使用されているパッケージに基づく汎用ドキュメントの場合があります。そのため、特定の製品では100%正確ではない可能性があります。特定の製品情報については、セールスサポートまでお問い合わせください

サンプル & 購入

Swipe or click the button to explore more details Don't show this again

製品型番

製品ステータス

Budgetary Price (US$)*/Qty

STから購入

Order from distributors

パッケージ

梱包タイプ

RoHS

Country of Origin

ECCN (US)

ECCN (EU)

Operating temperature (°C)

Operating Temperature (°C) (max)

Operating Range Distance (m) (max)

Package size (mm)

最小

最大

VL53L8CHV0GC/1

4.8 / 3600

直接購入

Available at 5 distributors

販売代理店在庫 VL53L8CHV0GC/1

販売代理店	地域	在庫	最小発注数量	パートナー企業リンク
ANGLIA Live	EUROPE	50	1	Buy from Distributor
MOUSER	WORLDWIDE	2665	1	Buy from Distributor
FUTURE	WORLDWIDE	500	0	Buy from Distributor
DIGIKEY	WORLDWIDE	2451	1	Buy from Distributor
YOSUN	ASIA/PACIFIC	20	1	Buy from Distributor

販売代理店在庫データ: 4/11/2025

OPT. LGA 6.40X3.0

Tape and Reel

CHINA

EAR99

NEC

-30

6.4 x 3.0 x 1.75

Buy from Distributor

VL53L8CHV0GC/1 量産中

Budgetary Price (US$)*/Qty:

4.8 / 3600

Available at 5 distributors

Buy Direct at ST

Add Free Sample

パッケージ:

OPT. LGA 6.40X3.0

梱包タイプ:

Tape and Reel

Country of Origin:

CHINA

ECCN (US):

EAR99

ECCN (EU):

NEC

詳細情報

Swipe or click the button to explore more details Don't show this again

（*）概算用の参考価格（US$）です。現地通貨でのお見積りについては、STのセールス･オフィスまたは販売代理店までお問い合わせください。
