You have growing requirements in the area of multimedia and high-speed interfaces?

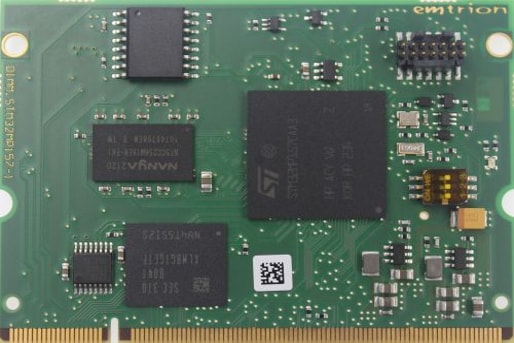

The DIMM-ARGON meets the requirements and offers long-term availability of more than 10 years.
In addition, emtrion's software specialists provide you with in-house Board Support Packages (BSP). The Linux operating system (Yocto and Debian) is available for the DIMM module.
Key features:
- Processor STM32MP157 from STMicroelectronics
- Dual-core Arm Cortex®-A7 with 650 MHz + Arm Cortex®-M4 with 200 MHz
- 3D graphics with RGB666 and MIPI DSI 2-lane interfaces up to 1366x768 pixels
- 512 MB RAM, 8 GB eMMC
- USB 2.0 host/device, 100 Mb Ethernet, CAN, 4 x UART, camera module, I2S audio, SD card, analog and digital GPIOs
- DIMM200 connection for a quick start into your application development
For a quick start to your application development, choose the right dev kit for you from our varied range.
Product Information:
- Current Revision: R1A
- Status: available
- Temperature Range: -25°C – 80°C
- Size (WxDxH): 67.6 mm x 49 mm x 10 mm
- Power Consumption: max. 2A
- Special functions: Co-Processor: Arm® Neon™, FPU CPU performance: up to 2x650 MHz- 2470 DMIPS + up to 200 MHz - 250 DMIPS
- Supported Carrier boards: Cadun, Tarion
対応製品 | STM32MP157 |
サイト |
ST製品 |
---|
Served Countries:
Worldwide
