Single Board Computer with Dual Cortex®-A7 and Cortex®-M4.

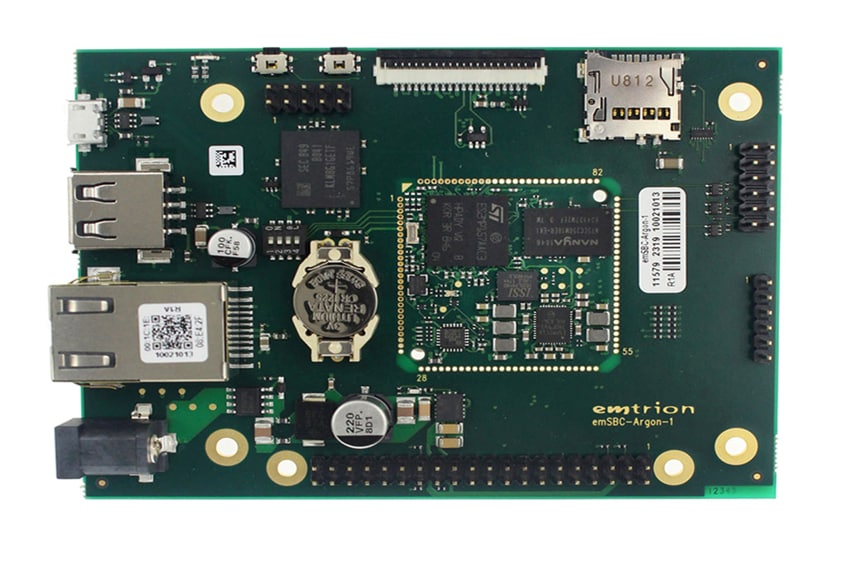

The emSBC-Argon is a powerful yet attractively priced single board computer. It enables real-time communication in power-saving operation. Its size of 104.5 x 77.5 mm makes it particularly space-saving.
Key Features:
- Processor STM32MP157 from STMicroelectronics
- Arm Dual Cortex®-A7 @ 650 MHz - 2470 DMIPS
- Arm Cortex®-M4 @ 200 MHz - 250 DMIPS
- Coprocessor: Arm® Neon™, FPU
- Operating system: Linux
- 512 Mbyte DDR3L SDRAM
- 2 Mbyte QSPI-NOR flash
- 8 Gbyte eMMC flash
- RPi compatible extension connector
- Interfaces among others: USB2.0 Host and OTG, 100Mbit Ethernet, DSI-LCD, CAN-FD
- Supply voltage: 7.0 V - 24.0 V
- Size: 104.5 mm x 77.5 mm x 16 mm
- Virtualization capable (jailhouse)
The emSTAMP argon module
The heterogeneous architecture of the STM32MP1 with the dual-core Cortex®-A7 also handles demanding tasks such as use in industrial IoT systems or motor control.
The additional Cortex®-M4 makes the SBC ideal for industrial communication systems. It optionally supports the PROFINET, EtherCAT and EtherNet/IP protocols, among others.
The Cortex®-M4 core uses the ecosystem of the STM32 MCU. Codes for STM32 Cortex®-M4 systems are easily reusable.
The emSTAMP Argon is available with the Linux operating system.
Note: The emtrion emSBCArgon Single Board Computer is now also available with Guiliani GUI software! Guiliani is a software framework from TES Electronic Solutions for creating elegant graphical user interfaces for embedded hardware.
Thanks to its flexible architecture and powerful functions, the STM32MP157 CPU can be used in a wide range of applications.
Examples:
- Industrial communication systems, machine control systems
- Industrial control devices with graphical user interfaces
- IoT, edge computing
- Smart home systems
- Medical devices
- Household app choice
