SATEL-VL53L4CX

量産中
MySTに保存する

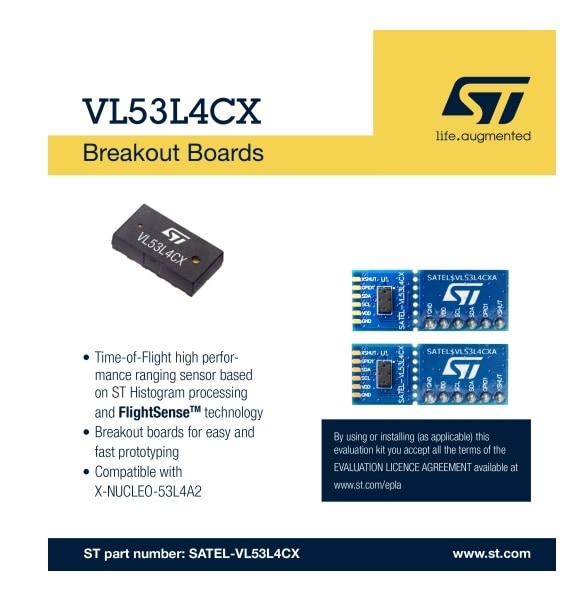

Breakout board embedding the VL53L4CX Time-of-Flight sensor with extended range measurement

データブリーフのダウンロード
Order Direct
概要

製品概要

概要

概要

The SATEL-VL53L4CX package includes two breakout boards, which can be easily integrated into the customer's devices.

The PCB section that embeds the VL53L4CX module is perforated. The developers can then break off the mini-PCB and use it in a 3.3 V supply application via flying wires.

This makes it easier to integrate the SATEL-VL53L4CX breakout boards into the development and evaluation devices thanks to their small size.

  • 特徴

    • VL53L4CX Time-of-Flight sensor with extended range measurement
    • Accurate absolute ranging distance, independent of the target size and reflectance
    • Distance measurement from 0mm up to 6m
    • Short distance linearity down up to 10mm
    • Histogram based technology
    • Multiobject detection capability
    • Targets beyond 80cm range are immune to crosstalk from cover glass and smudge
    • Divisible board that can be used as a mini-PCB breakout board, easy to integrate into the customer's device
    • Two breakout boards available in the package
    • Compatible with X-NUCLEO-53L4A2
