EVB-T5DR

量産中
MySTに保存する

Teseo V Dead Reckoning Evaluation Board

データブリーフのダウンロード
概要

製品概要

概要

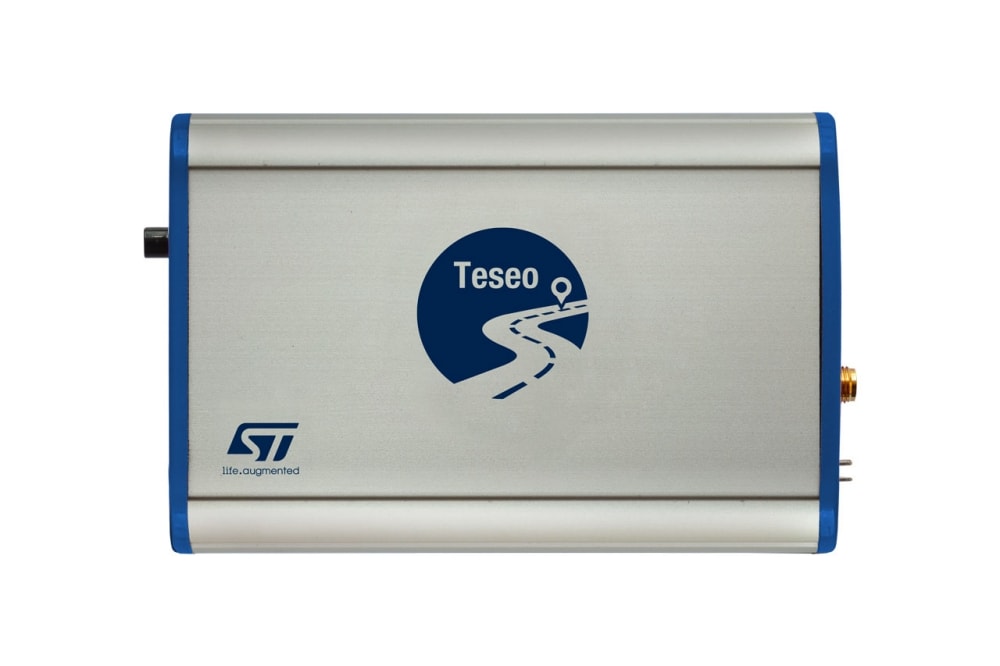

The EVB-T5DR board is a complete standalone evaluation platform for Teseo-V STA8100GA GNSS MultiBand and Multiconstellation receiver dead reckoning IC solution.

The EVB-T5DR is designed for the best STA8100GA performance. Boot and reset buttons allow an easy programming procedure.

The 14-pin connector allows access to the ODO/CAN signals to simplify car-connection.

Teseo-V embeds the high performance ARMTM Cortex-M7 microprocessor with RF front-end able to support different bands (L1 and L5), UART communication interfaces.

Performance and configuration can be analysed using the STMicroelectronics Teseo Suite PC Tool available on www.st.com.

  • 特徴

    • ST Teseo-V STA8100GA dead reckoning GNSS platform
    • Multiconstellation and MultiBand GNSS receiver; GPS, Galileo Glonass, BeiDou, QZSS supported
    • USB power supply
    • Button:
      • ON/OFF button
      • リセットボタン
      • Boot button
    • NMEA over UART by USB
    • PPS output
    • Leds:
      • PPS
      • Power
      • Antenna
    • ODO/CAN connector
    • STMicroelectronics ASM330LHH MEMS
