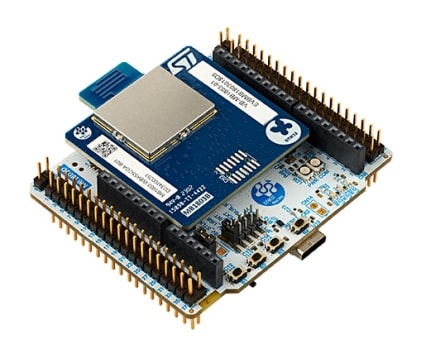

NUCLEO-WBA55CG

量産中

STM32 Nucleo-64 development board with STM32WBA55CG MCU, supports Arduino, ST Morpho connectivity

データブリーフのダウンロード Order Direct

製品概要

概要

NUCLEO-WBA52CGは、強力な超低消費電力無線機能が組み込まれた超低消費電力のBluetooth® Low Energy(LE)ワイヤレス・ボードで、Bluetooth® Low Energy(LE)SIG仕様バージョン5.3に準拠しています。

ARDUINO® Uno V3コネクタへの対応やST Morphoヘッダと各種専用シールドによって、STM32 Nucleoのオープンな開発プラットフォームの機能を簡単に拡張することができます。

  • 特徴

    • Arm® Cortex®-M33コアをベースに、UFQFPN48パッケージに1MBのFlashメモリと128KBのSRAMを搭載した、超低消費電力のワイヤレスSTM32WBA52CGマイクロコントローラ
    • マイコンRFボード(MB1863):
      • Bluetooth®仕様バージョン5.3をサポートする2.4GHz無線トランシーバを搭載
      • TrustZone®、MPU、DSP、およびFPUを備えたArm® Cortex® M33 CPU
      • 内蔵PCBアンテナ
    • ユーザLED x3
    • ユーザ・ボタン x3 / リセット・ボタン x1
    • ボード・コネクタ:
      • USB Micro-B
      • ARDUINO® Uno V3拡張コネクタ
      • STM32のすべてのI/Oへのアクセスを提供するST Morphoヘッダ
    • 柔軟性の高い電源オプション:ST-LINK / USB VBUS / 外部電源
    • USB再エニュメレーション機能を搭載したオンボードSTLINK-V3MODSデバッガ / プログラマ: 大容量ストレージ / 仮想COMポート / デバッグ・ポート
    • STM32CubeWBファームウェア・パッケージで利用できる包括的な無料ソフトウェア・ライブラリとサンプル・コード
    • IAR Embedded Workbench®、MDK-ARM、STM32CubeIDEなどの幅広い統合開発環境(IDE)をサポート
