製品概要
概要

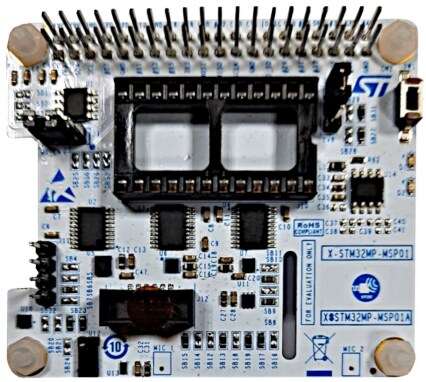

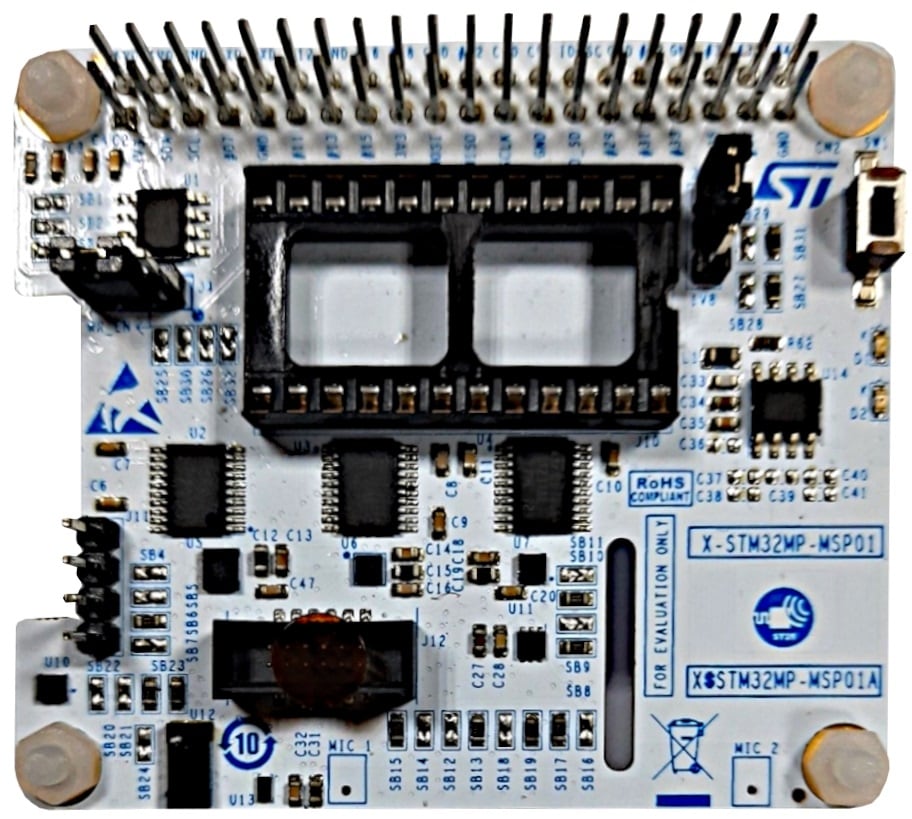

The X-STM32MP-MSP01 is a multisensor evaluation board that embeds motion MEMS, environmental, ambient light and Time-of-Flight sensors, a digital microphone, and an NFC tag. This board works with the STM32MPU discovery kit. It can be used with the X-LINUX-MSP1 to read the sensors.
The X-STM32MP-MSP01 main devices are the ISM330DHCX 3-axis accelerometer and gyroscope, the IIS2MDC 3-axis magnetometer, and the LPS22HH MEMS nano pressure sensor.
The board also includes the STTS22H digital temperature sensor, the VD6283TX ambient light sensor, the IIS2DLPC 3-axis accelerometer, the VL53L5CX multizone ranging sensor, and the MP23DB02MM digital MEMS microphone. The on-board dynamic NFC/RFID tag IC can work with a dual interface for the I²C, through a 13.56 MHz RFID reader, or via an NFC phone.
The X-STM32MP-MSP01 interfaces with the STM32MP1Dev via a 40-pin GPIO connector pins using I²C, SPI, and general GPIO pins. It is compatible with STM32MP157F-DK2 and a Raspberry Pi GPIO connector layout.
-
特徴
- Included sensors:
ISM330DHCX: 3-axis accelerometer and 3-axis gyroscope IIS2MDC: 3-axis digital magnetometer (±50 gausses) IIS2DLPC: 3-axis accelerometer for industrial applications (±2/±4/±8/±16 g) STTS22H: digital temperature sensor (-40 to +125°C) LPS22HH: nano pressure sensor (260 - 1260 hPa) VD6283TX: ambient light sensor VL53L5CX: Time-of-Flight (ToF) multizone ranging sensor - Dynamic NFC/RFID tag
- Digital microphone
- Standard DIL 24 pin socket for adapter boards
- Compatible with STM32MP157F-DK2 and Raspberry Pi
- Included sensors:
