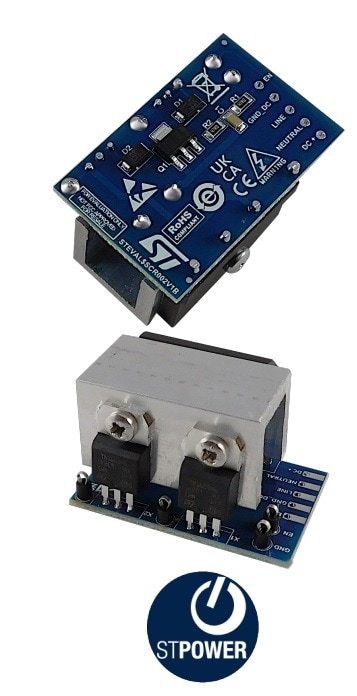

Inrush current limiter for active AC-DC bridge rectifier

下载数据摘要
Order Direct
概述

产品概述

描述

描述

STEVAL-SCR002V1引入了一个简单的创新型AC-DC前端电路，允许设计人员在任何采用输入整流桥式拓扑的转换器中限制浪涌电流。

该产品基于由一个Z0110MN SMD可控硅和两个STTH110A二极管组成的离散控制电路，可为电源SCR提供紧凑的非绝缘型高压驱动器。驱动电路将SCR栅极信号与交流线路极性同步，并直接从电源为SCR栅极供电。该操作不会在SCR中产生反向损耗。

与机电式解决方案相比，STEVAL-SCR002V1固态解决方案具有高可靠性和更长使用寿命，减少了电磁干扰，响应速度更快。

该解决方案还兼容在NTC/PTC旁路模式或MCU相位控制模式下执行的浪涌限制。

SCR驱动器的使能控制引脚以GND_DC为参考。因此，可以使用非绝缘型电源，或由MCU直接控制。

STEVAL-SCR002V1有五根线可连接，以便在现有的AC-DC转换器上轻松实现功能，用于即插即用测试。

它适用于RMS电流最高可达4.3 A（在60°C的环境温度下）的应用。

  • 所有功能

    • 两个TN1605H-6T 16 A - 600 V Hi Tj SCR采用TO-220封装，用于旁路浪涌电阻
    • 紧凑型解决方案：43.6 x 28.5 mm（≈ 1.8平方英寸）
    • 在所有模式下兼容AC-DC转换器（带/不带PFC）：CCM、CRM和DCM
    • 使能信号（EN = 3.3 V - 15 V）对比GND_DC（DC或PWM信号）
    • 适用于50 W至1000 W的应用（230 VRMS，TAMB = 60°C）
    • 符合AC或DC输入电压要求：90-265 VAC，50/60 Hz，或120-400 VDC
    • 耐用，抗干扰能力强（2 kV IEC 61000-4-5，4 kV IEC 61000-4-4）
    • 低EMI噪音（EN55014和EN55022）解决方案
